Control Panel VLT LCP 501

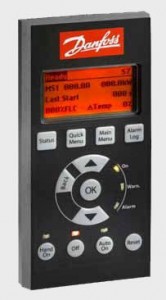

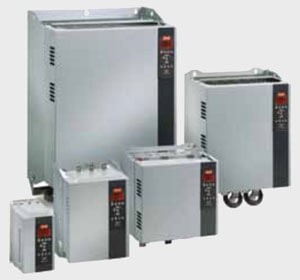

MCD_500_0001With the Control Panel VLT® LCP  501 being a full function interface, everything you can do on the VLT® Soft Starter MCD 500 is possible via the LCP 501.

Full control and monitoring The screen view set-up is selected from 7 standard  views and one user programmable.

Language selection: English, Chinese, German, Spanish, Portuguese, French, Italian, Russian.

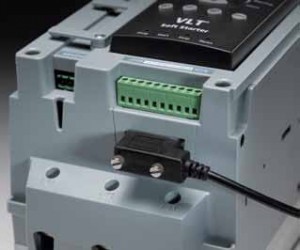

The VLT® LCP  501 is connected to the MCD 500 by using a 3m cable using 9 pin (D-sub) plug and 3m cable provided with the IP 65 (NEMA 12) door-mount kit.

Once connected, the soft starter asks whether you want to copy parameters from LCP to starter or starter to LCP (if different).

MCD_500_0002Control Panel VLT® LCP 501

  • Same user interface as VLT® Soft
  • Starter MCD500
  • Plug & play with MCD500
  • Copy/ paste of parameters
  • Multiple monitoring setup
  • Door-mount kit – 3m cable
  • IP65 (NEMA 12
Features Benefits
Danfoss “FC” menu structure and button interface concept – Proven logical access ensuring easy set-up
Parameter upload/ download – Saves time, simplifies set-up
Same user interface as VLT® Soft Starter MCD500 – Effective, simple and flexible
Adjustable multiple monitoring views – You see what you want to see.
Door mount IP 65 (NEMA 12) – Reliable in harsh environment
Speaks your language – Comfortable setup
3 metre cable – Remote Operation
New output on MCD500 – Simple to connect, Communication port on MCD500 available also with LCP

MCD_500_0003100% easy connection

  • The Modbus, Profibus and Device net modules use another  port on the MCD 500 (at the side of the soft starter)

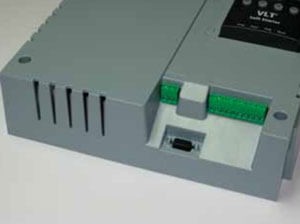

  • Separate LCP 501 output at the bottom for 9 pin plug and 3m cable
  • One ordering number (LCP with door-mount kit and cable)
  • Plug & play connection (also if soft starter is powered up)
  • One cable for power and communication
  • Powered up by soft starter
  • Copy of parameter set- up
